Both LiftMaster and DoorKing offer operators for residential and commercial vehicle gates. The better choice depends on the gate’s size and condition, available space, peak traffic, power supply and access-control requirements. Compare specific models and complete installation proposals rather than choosing from the brand name alone.
For a DC alley gate or suburban driveway, start by checking whether the gate moves freely and whether the site can accommodate the required safety devices and a separate pedestrian route.
Swing or Slide: Start With the Available Space
Swing gates need a clear opening arc. A slope, parked vehicle or narrow alley can limit where they can travel. Linear actuators attach to the gate and a supporting post; other swing operators use a separate operator housing and arm assembly.

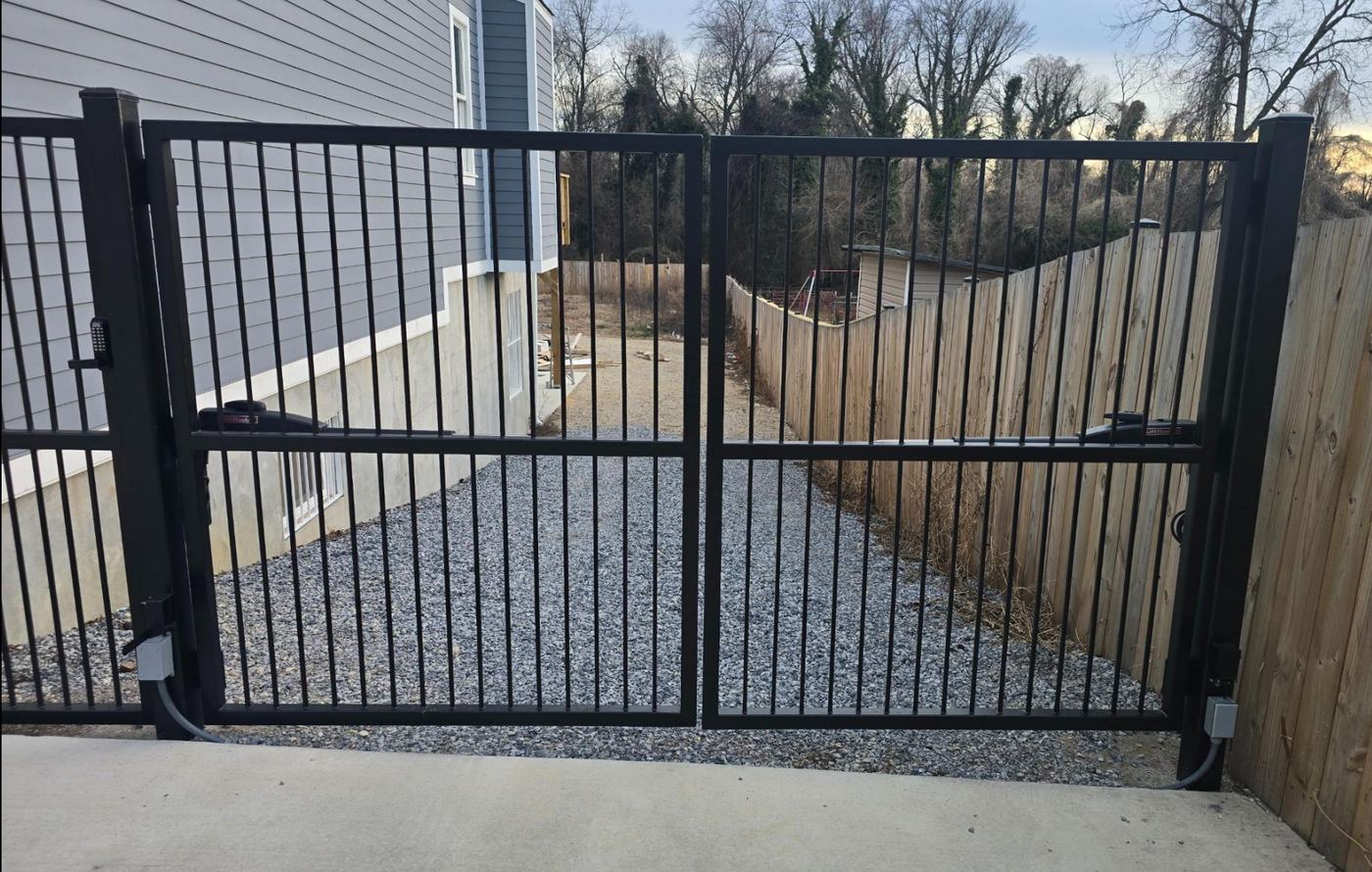

A double swing gate with LiftMaster arm operators and a keypad-locked pedestrian gate beside it. RBD custom fabricated both gates and installed the operators and lock.
Slide gates move alongside the opening. They need enough space for the gate and its support arrangement when open. A cantilever design can require more space than the clear opening alone, so measure the complete layout before selecting equipment.

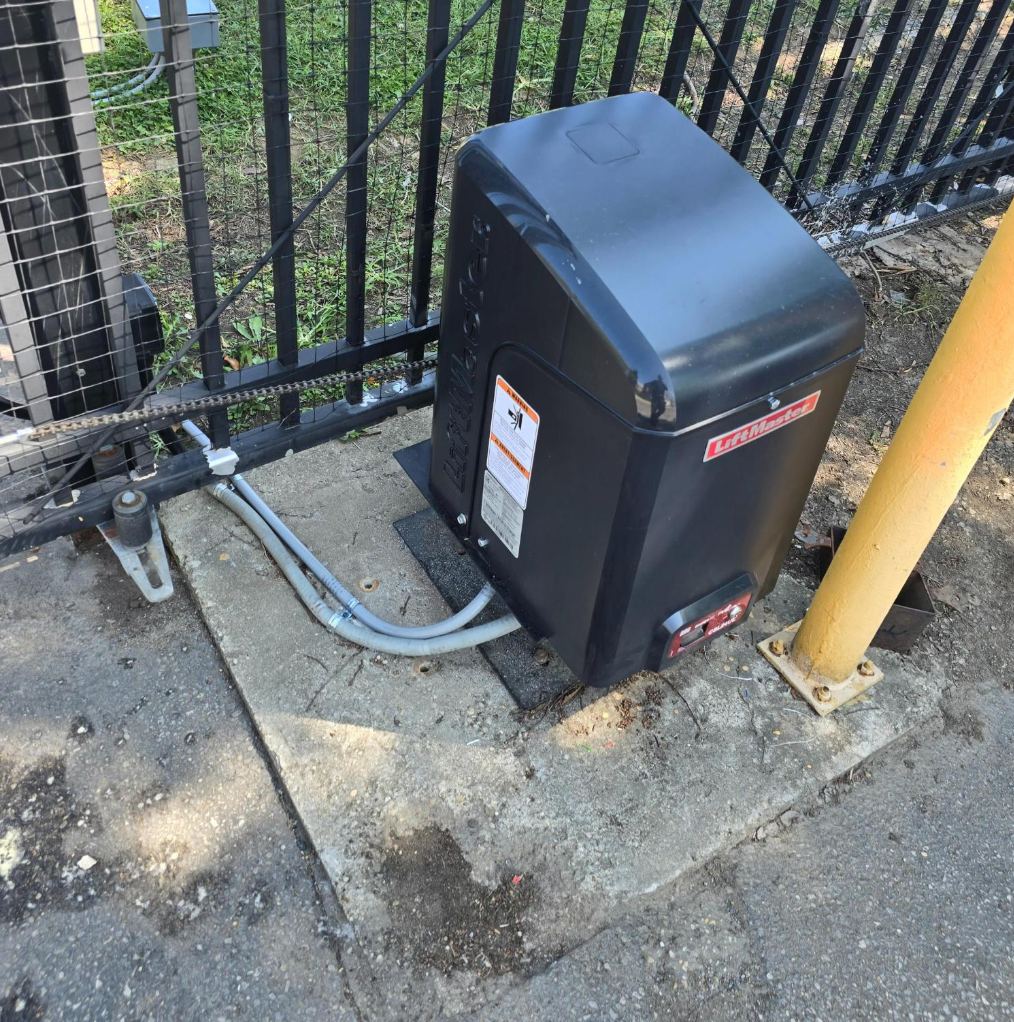

A LiftMaster slide gate operator RBD installed on a concrete pad, with a protective bollard.
The gate’s condition matters as much as its dimensions. An operator is not a repair for failing hinges, an unstable post, a dragging gate or damaged rollers.
LiftMaster and DoorKing at a Glance
| Decision | LiftMaster | DoorKing |
|---|---|---|
| Residential swing gate | LA400UL and LA500UL are examples of DC linear-actuator options | Offers several swing designs, including conventional and newer DC platforms |
| Commercial traffic | Offers commercial swing and slide models | Offers commercial swing and slide models |
| Backup power | Available on selected models; verify the specified configuration | Available on selected models; verify batteries, backup behavior and accessories |
| Phone access | Compatible hardware can connect to myQ services | Options include DKS entry systems and the Smart Gate Controller |
| Existing access control | Check the entry panel, receiver and required interfaces | Check the entry panel, receiver and required interfaces |
| Best basis for selection | Gate fit, duty rating, support and the complete quoted system | Gate fit, duty rating, support and the complete quoted system |
The table describes product families. It does not make every model within a brand interchangeable.
Compare Model Ratings Carefully
LiftMaster lists the LA400UL as a residential linear actuator and the LA500UL as a residential/light-commercial model. Both product pages describe battery backup.
For swing gates, a maximum gate length and maximum weight are not necessarily a permitted combination. Ask the installer to check your gate against the model’s length-versus-weight chart, mounting geometry and instructions. Solid infill and wind exposure also affect selection.
DoorKing’s eVolve operator range includes the 2160 swing operator and 2170 slide operator, with brushless DC motors, backup batteries and onboard programming. Other DoorKing platforms may suit an existing installation. Compare the exact model and configuration offered, including its operating class and duty limits.
Availability, accessory requirements and product specifications should be confirmed when the quotation is prepared.
Traffic and Usage Class Are Different Questions
Daily cycle count helps size an operator, but peak demand matters too. A gate serving a busy building may complete many cycles within a short morning or evening period. Ask about the rated duty, expected cycles per hour and the gate load used for that rating.
UL 325 usage classes describe the intended setting, ranging from residential properties to public-access commercial sites and restricted industrial locations. They are not a ranking of build quality. An operator must be suitable for the property’s usage class as well as its traffic.
For an apartment or commercial proposal, include how the gate will behave during a rush, a power failure and a safety-device fault.
Battery Backup and Solar Power
A DC motor does not, by itself, prove that a complete battery-backup system is included. Ask which batteries, chargers and accessories are part of the quoted package.
Backup duration depends on the gate, battery condition, temperature, accessory load and how often the gate moves. Decide whether the desired outage behavior is continued cycling, a controlled opening or another supported mode. The entry panel and network equipment may need separate backup power.
Solar can be useful where a suitable model is far from utility power. Sizing must account for daily use, shading, winter conditions and accessory consumption. A shaded alley should not be assumed to support the same system as an open driveway.
Phone Control and Telephone Entry

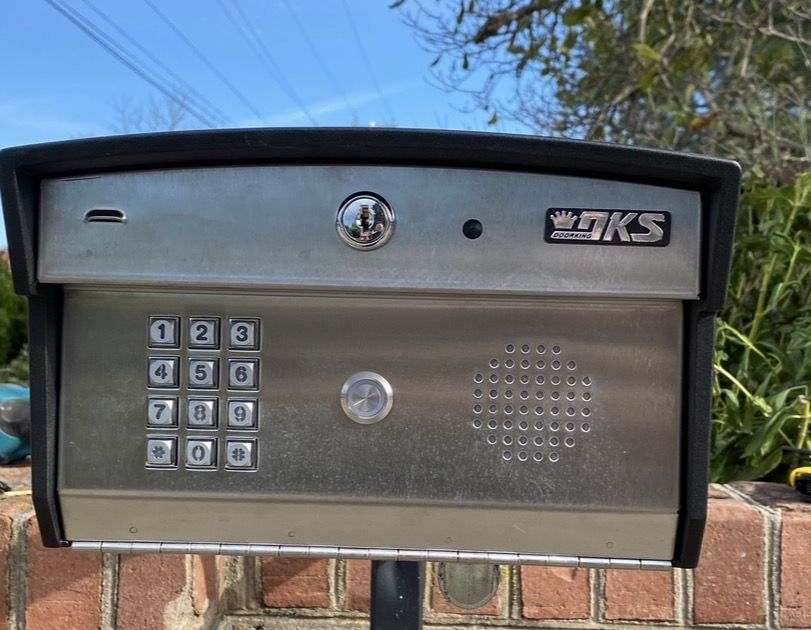

A DoorKing telephone entry panel RBD installed on a brick gate pier.
For either brand, identify what the owner actually needs: basic remote opening, resident credentials, visitor calls, video, event history or management of multiple entrances.
LiftMaster offers myQ-connected options. Hardware, connectivity and service requirements vary, so have the proposal identify any subscriptions and recurring costs.
DoorKing’s Smart Gate Controller supports up to 20 users and uses Wi-Fi for setup and remote operation. Gate-status reporting needs a position input or suitable sensor. This controller is a different product from a complete multi-tenant telephone or video entry system.
An operator and an entry system do not always have to share a brand. Have the installer confirm the required control and status interfaces, along with which features will work together. Read more about telephone entry systems for vehicle gates.
Gate Safety Belongs in the Installation Scope
UL 325 addresses operator safety; ASTM F2200 addresses automated vehicle-gate construction. Buying a listed operator does not establish that the assembled gate system is correctly designed or installed.
The DASMA guide to UL 325 explains that, where entrapment risk exists, at least two independent means of protection are required for each entrapment zone, subject to the requirements for the gate type and direction of travel. External entrapment-protection devices must be monitored and specified as compatible with the operator by its manufacturer. The number and placement of devices depend on the complete gate layout.
The installer should document the relevant hazard areas, sensor locations, required gate modifications and operating checks. Separate pedestrian access is also part of planning a vehicle-gate system.
A safety fault can stop automatic operation or restrict operation, depending on the equipment and fault. Follow the manufacturer’s service instructions; never bypass a failed protective device. Periodic inspection and testing remain necessary after installation.
Compare the Complete Installed Cost
Two operator prices can lead to very different project totals. Ask for an itemized proposal covering:
- The exact operator, mounting hardware and gate repairs or fabrication.
- Electrical work, conduit, trenching and any network or cellular connection.
- Entrapment-protection devices, vehicle detection and access controls.
- Backup batteries, supported outage operation and any solar equipment.
- Permits, commissioning, owner instruction, recurring subscriptions and maintenance.
The strongest proposal explains how the whole system fits your property. Either brand can be a good choice when the model, installation and support are suitable.
How RBD Security Approaches a Gate Project
RBD installs and services LiftMaster and DoorKing gate operators for homes, condo buildings and commercial lots across Washington, DC, Maryland and Northern Virginia. We start by checking how the gate moves and how it is supported, then recommend specific models, the safety devices the layout needs, and how the gate should behave during a power outage. Because RBD also does custom welding and concrete work, gate repairs, a new gate or an operator pad can be part of the same project. High-voltage electrical work is handled by a licensed local electrician partner.
Frequently Asked Questions
Is LiftMaster or DoorKing better for a home driveway?
Both offer suitable options. Gate geometry, weight, wind exposure, expected traffic, backup needs and existing controls should determine which specific models are compared.
Can an operator be added to an existing gate?
Sometimes. The gate must move correctly and have suitable supports, clearances and safety provisions. Repairs or modifications may be needed before automation.
Will the gate work during a power outage?
That depends on the operator, installed backup equipment and configured outage behavior. Ask for the expected operation of the gate and entry system together.
What information helps with a quotation?
Send photos, approximate gate dimensions, whether it swings or slides, the existing model number if present, and an estimate of daily and peak traffic. Identify the available power and any existing entry panel.
